Thermal Modeling of High Performance Packages in Portable Computers

Ram Viswanath, Senior Engineer, Intel Corporation, Chandler AZ
Ihab A. Ali, Member Technical Staff, Flomerics Inc., Marlborough MA

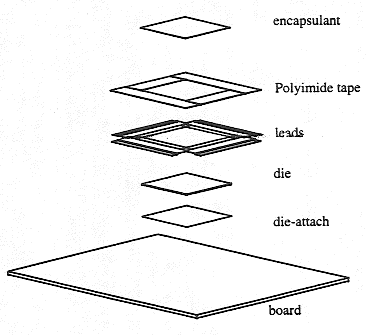

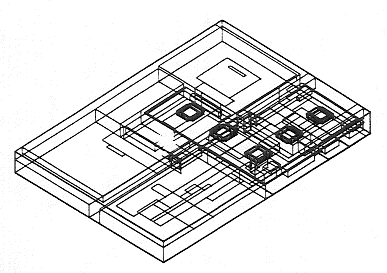

A numerical study was conducted to determine the thermal performance of the Pentium^TM Processor in a Tape Carrier Package (TCP) operating inside a typical portable computer. The objective of this study is to develop a validated system level model of the portable environment and demonstrate that equipment designers can carry out design iterations of possible heat transfer configurations to analyze cost, performance and manufacturability tradeoffs. A detailed 3D numerical model of the package was constructed using a computational fluid dynamic software. In the interest of keeping the computational model tractable, some simplifying assumptions were employed to obtain equivalent compact models of the various components in the computer. The fluid motion is essentially a buoyancy driven convection inside an enclosure with multiple discrete heat sources. The results obtained indicate that the model is in good agreement with the experimental data, both qualitatively and quantitatively. Thermal performance limits were established for various package families. The validated model was used to investigate the improvement in thermal performance due to increased PCB thermal conductivity and the inclusion of heat spreaders, heat pipes and vents.

• Access the Paper on the Intel WWW Site
  This is an abstracted version of the paper originally presented at the 45^th Electronics Components and Technology Conference, 1995, Las Vegas NV
